The Multipower series: Ready-to-use High Voltage Power Distribution Units for Every Requirement

Our three MultiPower Power Distribution Units, as plug-and-play solutions, meet the highest standards of safety and efficiency in high-voltage onboard networks. Together, these high-voltage PDUs cover the extensive range of applications for commercial vehicles, construction vehicles, municipal vehicles, as well as industrial and maritime applications.

Three PDUs, One Mission: Unified Performance and Reliability

All MultiPower PDUs (A - Allrounder, C - Construction or E - Extended) have been developed as an innovative plug & play solution. Our MultiPower PDUs combine maximum performance with compact efficiency. The expert design of the high-quality components in the IP6k9k-protected aluminum housing and the in-house production enable voltages of up to 1000V DC. Each MultiPower PDU offers its own advantages and application possibilities thanks to its respective specifications. Thanks to their standardized design, the PDUs are quickly available and enable efficient series production.

Customized PDU Solutions for Every Need

Our pioneering MultiPower PDUs A, C and E are designed to meet almost every standard market requirement. However, if specific adaptations are required, we offer customized solutions. Simply contact us so that we can design the PDU according to your requirements. The design and manufacture of high-voltage PDUs is one of our core competencies, and we customize our products as required in order to optimally meet the needs of our customers.

In focus: The Key Differences of our Application-Specific MultiPower PDUs

Our MultiPower PDUs offer a variety of features tailored to different application areas. In the following overview, we have compiled the key differences between each model. Do you have any questions or would you like product advice? Get in touch with us now.

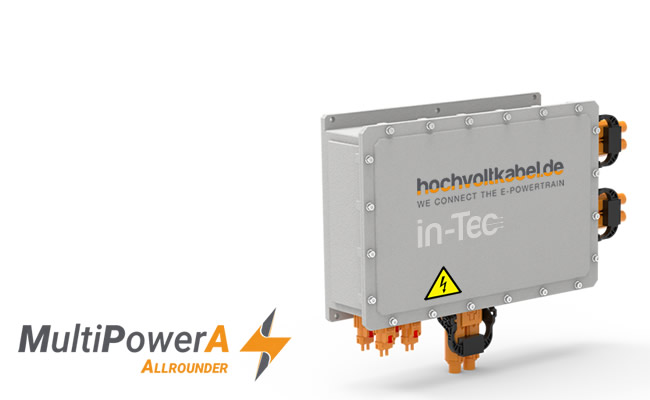

MultiPowerA (Allrounder PDU)

MultiPowerA (Allrounder PDU)

Suitable for: Performs with its compact design in various vehicle environments.

Size: 480 x 330 x 130 mm

Weight: approx. 15 kg

Interfaces: 7x HV and 1x LV

Operating current: max. 500A short-term & 250A continuous

Connections:

  • 1 x 250A Battery _ Unprotected

  • 1 x 250A DC Charging _ Switchable, HV+ & HV- circuit protected

  • 1 x 250A Inverter _ HV+ circuit protected (scalable from 250 to 500A)

  • 4 x 30A Aux / Reserve _ HV+ circuit protected (scalable from 5 to 30A)

Applications:

  • Municipal vehicles

  • Boats

  • Tenders

  • Water taxi

  • Catamaran

  • Aviation (airport vehicles)

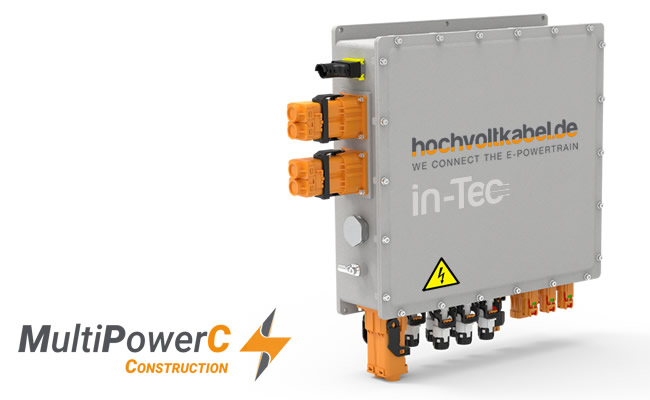

MultiPowerC (Construction PDU)

MultiPowerC (Construction PDU)

Suitable for: Designed primarily for applications in demanding construction environments.

Size: 500 x 460 x 150 mm

Weight: approx. 25 kg

Interfaces: 12x HV and 1x LV

Operating current: max. 1000A short-term & 800A continuous

Connections:

  • 3 x 300A Inverter _ HV+ circuit protected (scalable from 250 to 500A)

  • 2 x 500A Battery _ Switchable & unprotected

  • 1 x 500A DC charging _ Switchable & unprotected

  • 1 x 100A AC charging _ HV+ circuit protected (scalable from 70 to 100A)

  • 2 x 30A DC-DC converter _ HV+ circuit protected (scalable from 5 to 30A)

  • 1 x 30A Heater _ HV+ circuit protected (scalable from 5 to 30A)

  • 1 x 20A Air Conditioning Compressor _ HV+ circuit protected (scalable from 5 to 30A)

  • 1 x 15A Reserve _ HV+ circuit protected (scalable from 5 to 30A)

Applications:

  • Agricultural vehicles

  • Cranes

  • Civil engineering machinery

  • Road construction vehicles

  • Mining equipment

  • Snow ploughs

  • Heavy equipment

  • Retrofitting - Sprinters, buses, delivery vans

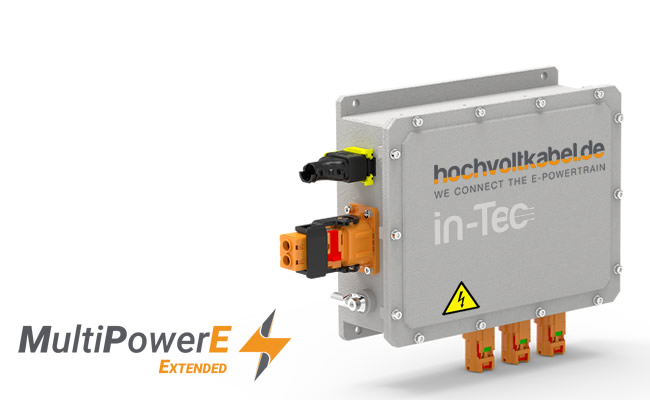

MultiPowerE (Extended PDU)

MultiPowerE (Extended PDU)

Suitable for: Offers a sophisticated power distribution solution with individual precharge functionality for various applications.

Size: 295 x 210 x 100 mm

Weight: approx. 9 kg

Interfaces: 4x HV and 1x LV

Operating current: max.150A short-term& 100A continuous

Connections:

  • 1 x 100A Input

  • 3 x 30A Output _ Protected, switchable, and with individual precharge

Applications:

  • Construction vehicles

  • Mining vehicles

  • Tractors

  • Loaders

  • Municipal vehicles

  • Forestry vehicles

  • All-purpose vehicles

  • Compact loaders

  • Multifunctional machines
